Hardware & integrations

Remote monitoring hardwareMaximum insight. Minimum power.

TrackSyte® Hub, Neo and Neo 2 are field connectivity devices — telemetry gateways that connect remote equipment into the TrackSyte® platform so you can monitor power, status and performance without a routine site visit.

Hub sits on your existing network with dual Ethernet, RS485 and GPS. Neo adds its own ultra-low-power LTE Cat 1 bis link, GPS and Bluetooth for assets without a site router. Neo 2 is the multi-protocol gateway with RS485, CAN, Modbus, GPIO, Ethernet, Wi-Fi, Bluetooth, 4G LTE / LTE-M / NB-IoT and a 9–30 V DC supply — see Neo 2 hardware. RS485 is available on Hub and Neo 2 (not exclusive to Hub). All feed the same portal so you know before you go.

See the portal →

Our hardware solutions

Purpose-built hardware for visibility, connectivity and control.

TrackSyte Neo 2 remote monitoring gateway

Neo 2 gateway

Fits inside the asset and reads batteries, generators, controllers and machines over RS485 / Modbus, CAN bus (including J1939), Ethernet, Bluetooth and inputs. GNSS location and a lithium backup battery are built in.

Connectivity
4G LTE / LTE-M / NB-IoT · 10/100 Ethernet · 2.4 GHz Wi-Fi · Bluetooth / BLE · GPS, Galileo, GLONASS, BeiDou
Power
As low as 0.013 W · 9–30 V DC supply · Lithium backup battery · SIM valid for five years
Industrial interfaces
CAN 2.0A/B and CAN FD · SAE J1939 · RS485 / Modbus RTU · Digital inputs and outputs · UART / USB, VE.Direct

Explore Neo 2

Low Power

Ethernet

RS485

Bluetooth

GPS

TrackSyte® Hub

Ethernet connected device gateway

Connects field assets to the TrackSyte® platform. Utilise an existing modem / router with dual ethernet connections. Integrates seamlessly with your existing equipment — no expensive redesigns or rewiring required.

✓Less than 1W power consumption using sleep modes
✓2" touchscreen with live system data
✓Dual Ethernet, RS485 & GPS built in
✓12V or USB-C power, DIN rail mounting
✓Victron, EFOY, Emmjen & LiFePO4 ready

Ultra Low Power TrackSyte® Neo

LTE

Bluetooth

GPS

WiFi

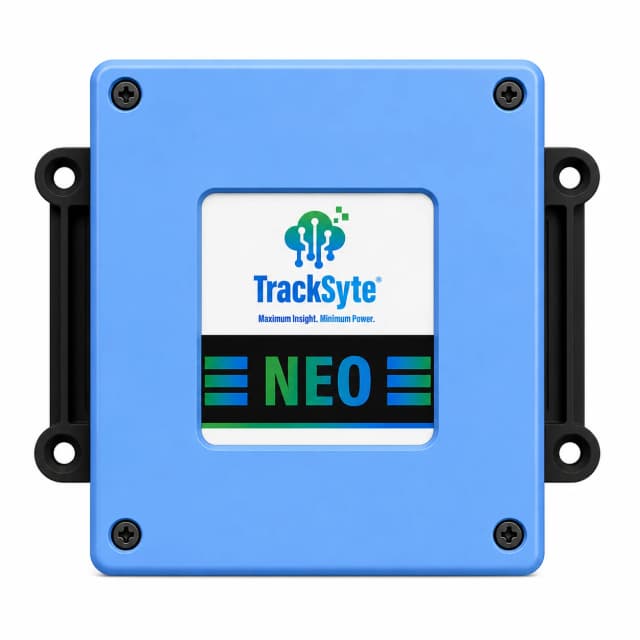

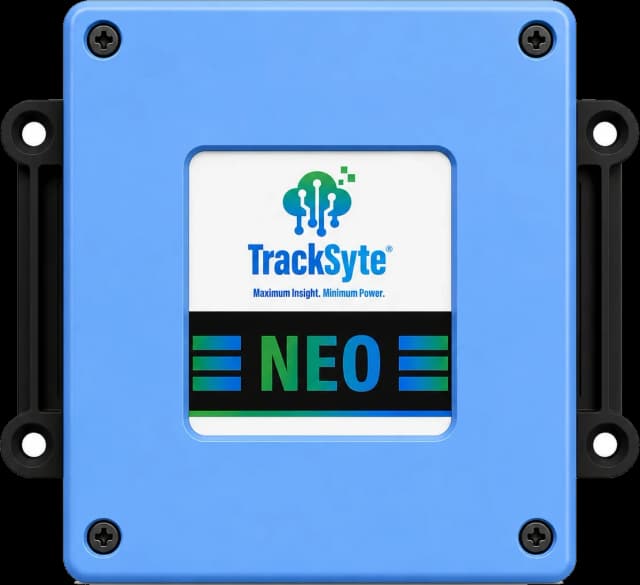

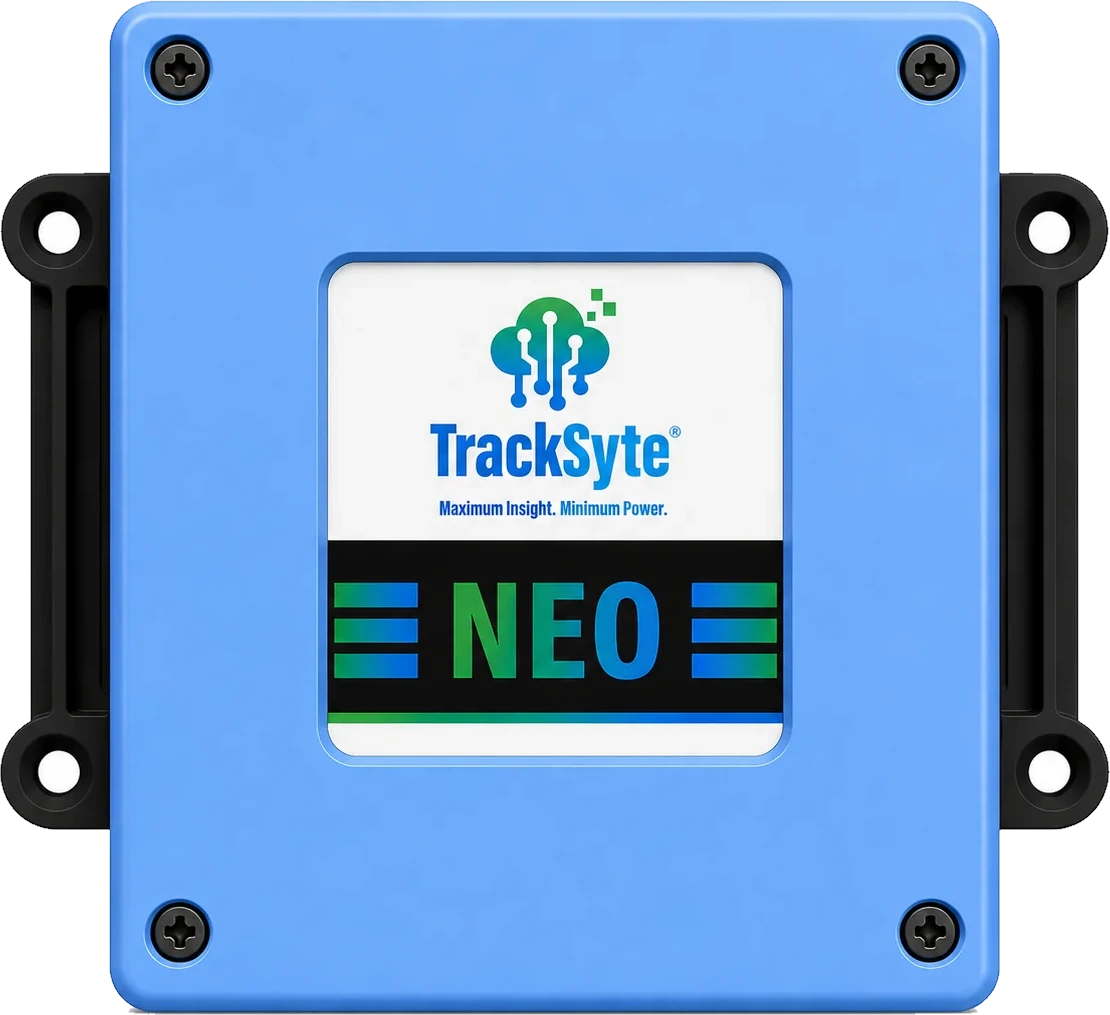

TrackSyte® Neo

LTE connected device gateway

Ultra-low power solution for connecting field assets to the TrackSyte® platform. Integrated LTE Cat 1 bis connectivity, antenna and a bundled SIM with up to 10 years' worth of data included*. Seamless integration with your existing equipment.

✓1–5 mA low-power operation (0.003–0.017 W)*
✓Global LTE Cat 1 bis connectivity
✓Bundled SIM with up to 10 years of data*
✓Multi-constellation GNSS positioning
✓WiFi and Bluetooth 5 LE

*Depending on update settings used.

Works with the systems you already use

Seamless integrations with the platforms and technologies you rely on — including Victron battery & solar monitoring. See all integrations.

MQTT

Victron battery & solar monitoring

API

Different roles.
Complete coverage.

Neo provides its own ultra-low-power LTE connection. Hub uses your existing network to bring multiple local systems into one live view. Neo 2 adds multi-protocol field interfaces (including RS485, CAN, Modbus and GPIO) for deeper plant and perimeter deployments. The same hardware family also supports construction and plant monitoring across mixed fleets.

Capability	TrackSyte® Hub Ethernet gateway	TrackSyte® Neo LTE gateway	TrackSyte® Neo 2 Multi-protocol gateway View Neo 2 →
Independent LTE Cat 1 bis connection	—	✓	—
Bundled SIM + up to 10 years of data*	—	✓	—
SIM valid for five years	—	—	✓
1–5 mA low-power operation*	—	✓	—
Power draw as low as 0.013 W*	—	—	✓
WiFi connectivity	—	✓	✓
Motion, impact & orientation sensing	—	✓	✓
Bluetooth connectivity	✓	✓	✓
Built-in GPS / GNSS	✓	✓	✓
Dual Ethernet ports	✓	—	—
Built-in touchscreen	✓	—	—
USB-C power and DIN rail mounting	✓	—	—
Uses an existing router / local network	✓	—	✓
Built-in RS485	✓	—	✓
Ethernet connectivity	✓	—	✓
Wide 9–30 V DC supply input	—	—	✓
12V supply	✓	—	✓
CAN bus connectivity	—	—	✓
Modbus connectivity	—	—	✓
GPIO connectivity	—	—	✓
Cellular 4G LTE / LTE-M / NB-IoT	—	—	✓
CAN FD	—	—	✓
SAE J1939 over CAN	—	—	✓

*Depending on update settings used. Bluetooth on the TrackSyte® Hub requires the optional Bluetooth module. The Neo column is the original LTE Neo SKU — Neo 2 is a separate multi-protocol gateway (/hardware/neo-2). RS485 is fitted on Hub and Neo 2; original Neo remains without RS485 until product confirmation changes. Dual Ethernet stays a Hub capability — Neo 2 has Ethernet connectivity, not dual ports.

Not sure which hardware is right for you?

Tell us about your assets and we'll recommend the best hardware setup for your site.
